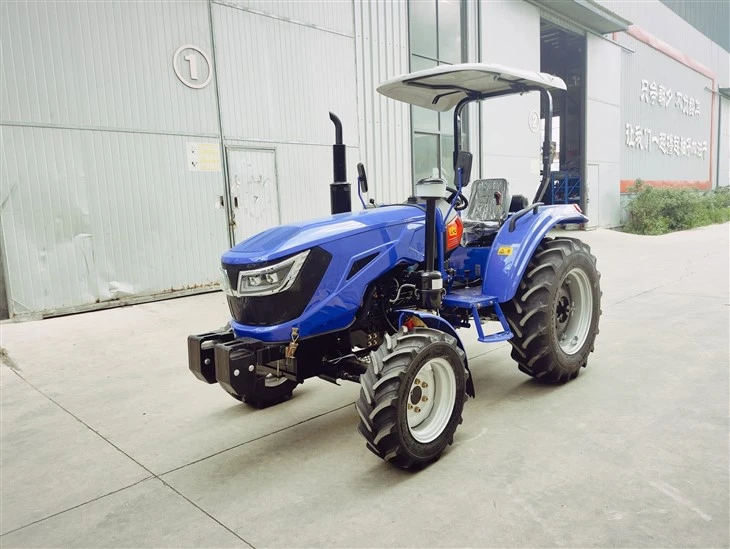

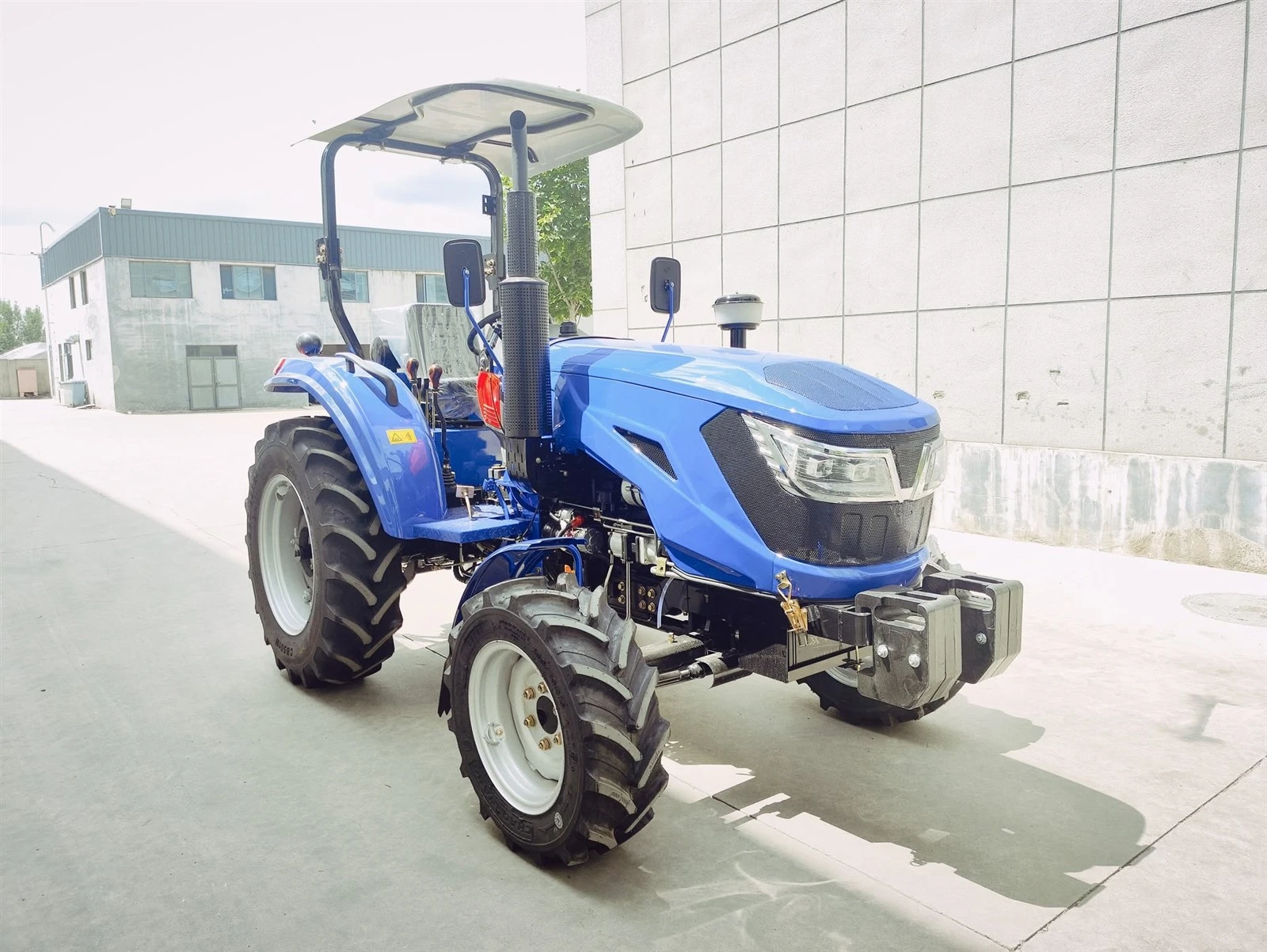

SUTH504 is a 50HP four-wheel-drive agricultural tractor designed for reliable performance, smooth operation, and strong adaptability across different farming conditions. With radial tires, narrow tracking, and a compact body, it is especially suitable for row crops, garden farming, and medium-scale field operations.
Specs.
Main Specifications & Features

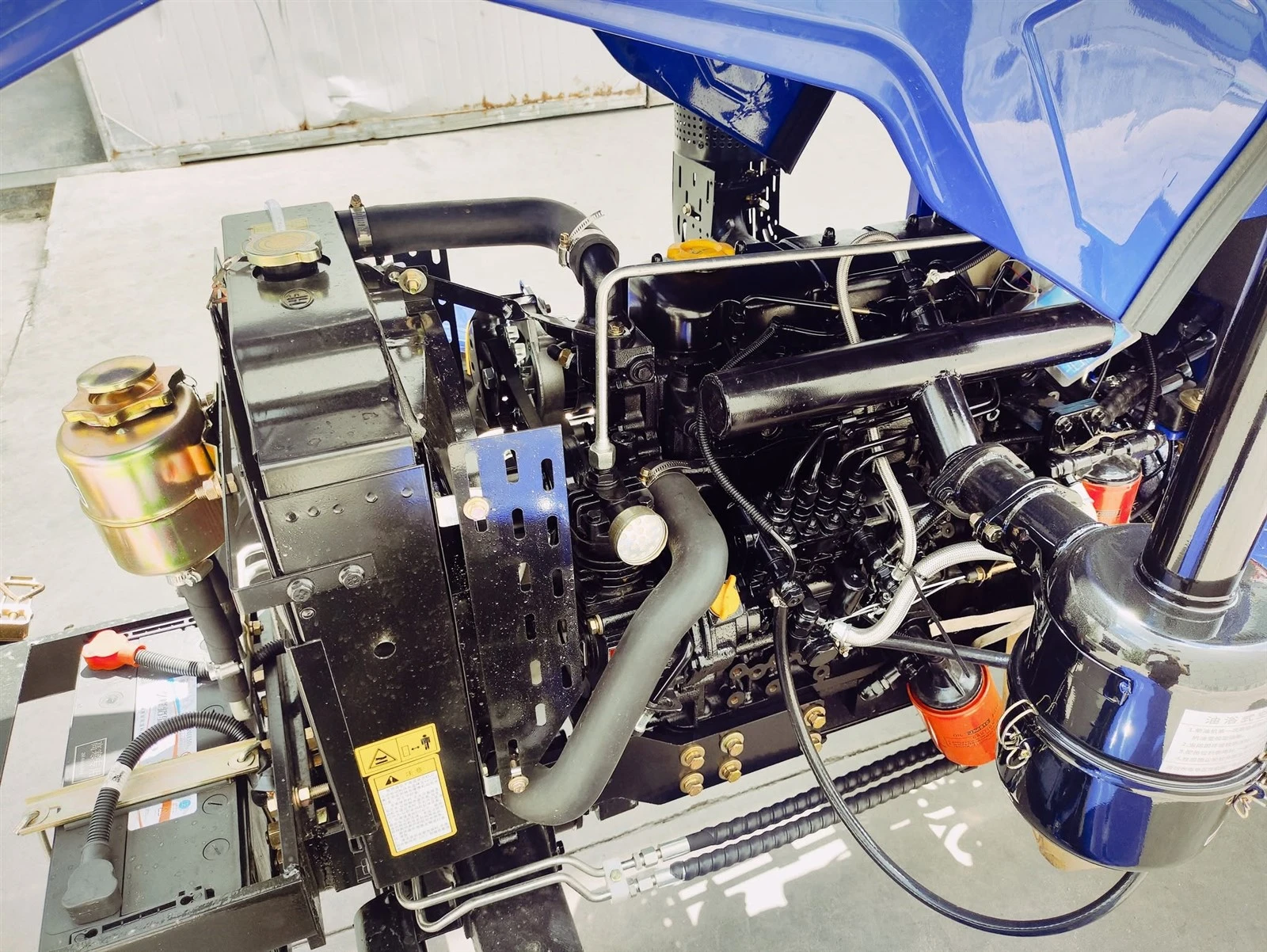

Engine & Performance
Rated Power: 50HP
Engine Type: Four-Cylinder Diesel Engine
4WD System – strong traction and stability

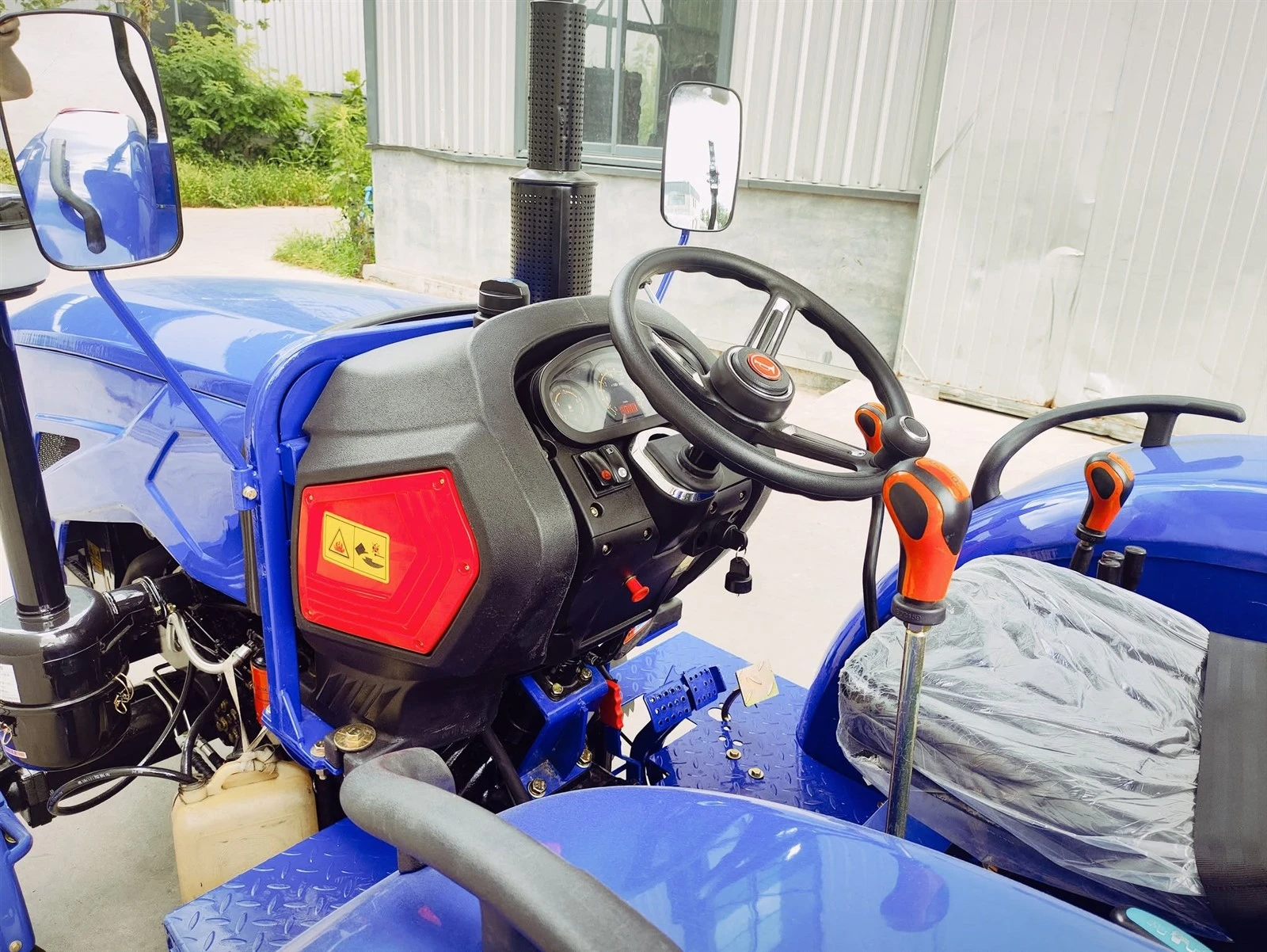

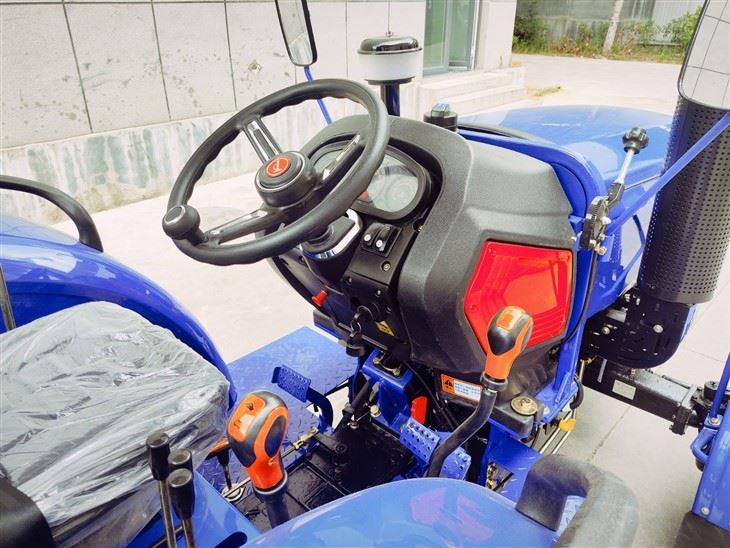

Power Steering – effortless and precise control

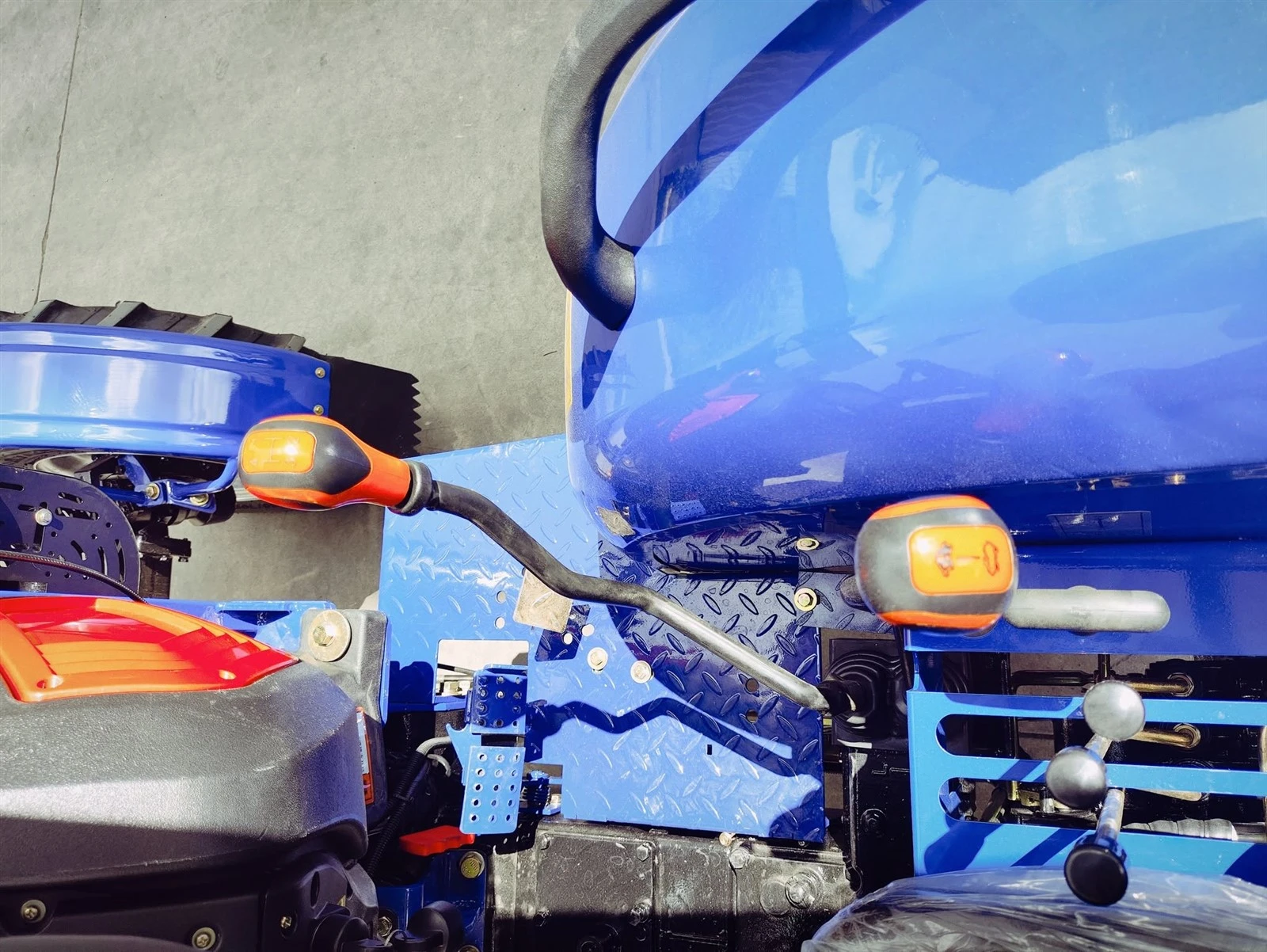

Transmission & Operation
Gearbox: 8 Forward + 8 Reverse (8F+8R Shuttle Shifts)
Single-Stage Clutch – simple structure, easy maintenance
New Hood Design – modern appearance and improved airflow
PTO & Hydraulic System

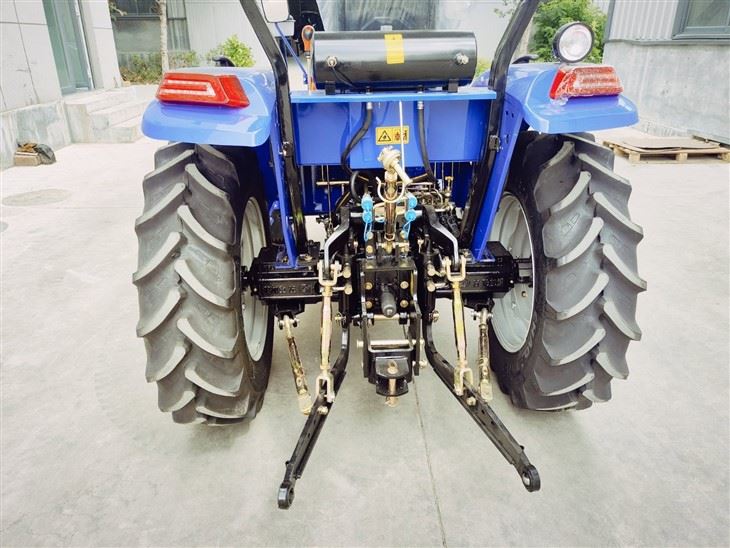

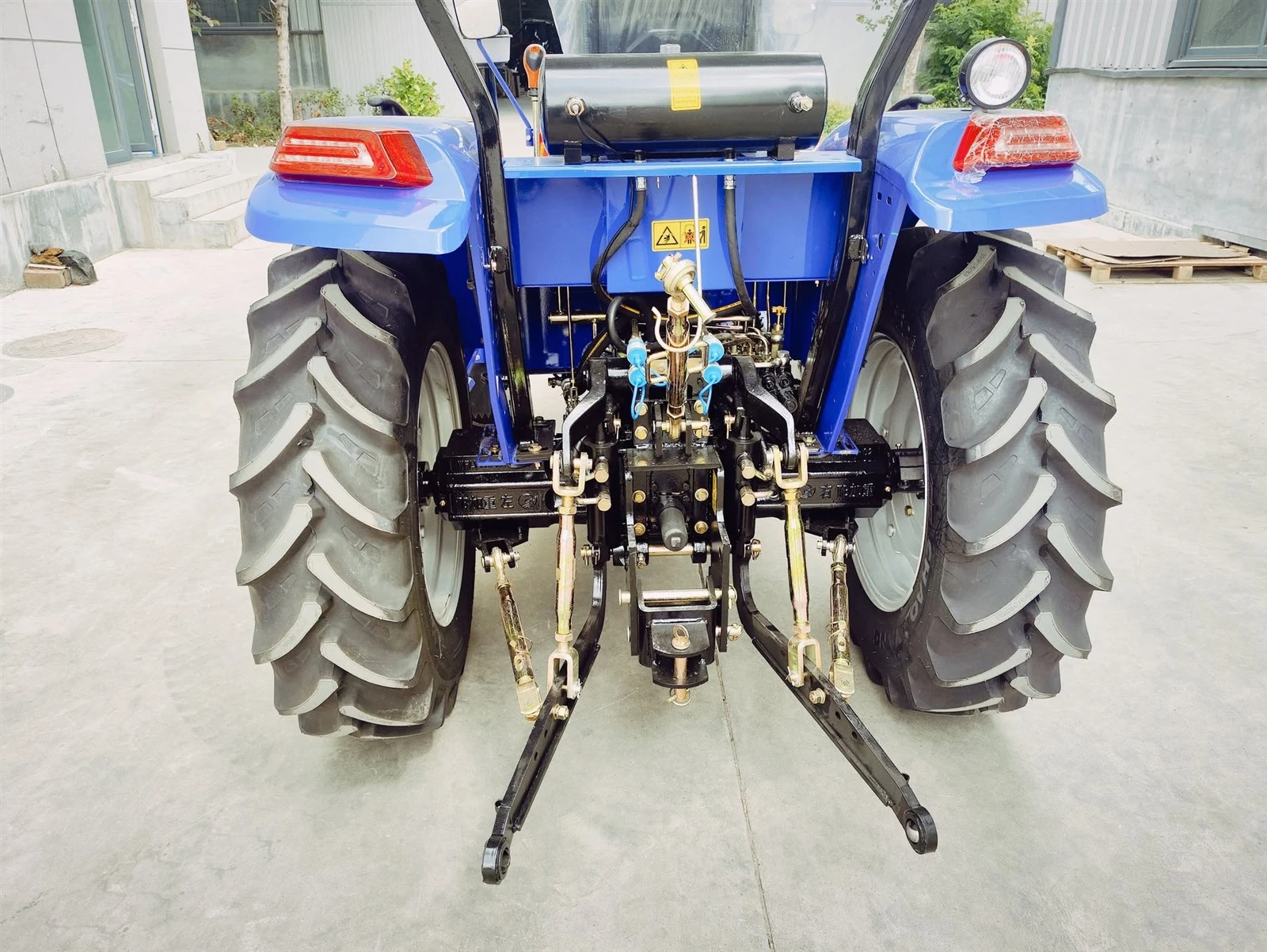

Double-Speed PTO: 540 / 720 RPM – compatible with multiple implements
Two-Way Hydraulic Outlet – supports various farming attachments
Air Compressor – convenient for pneumatic tools and trailer braking
Tires & Stability
Tracking Width: 1300 mm – ideal for narrow-row farming

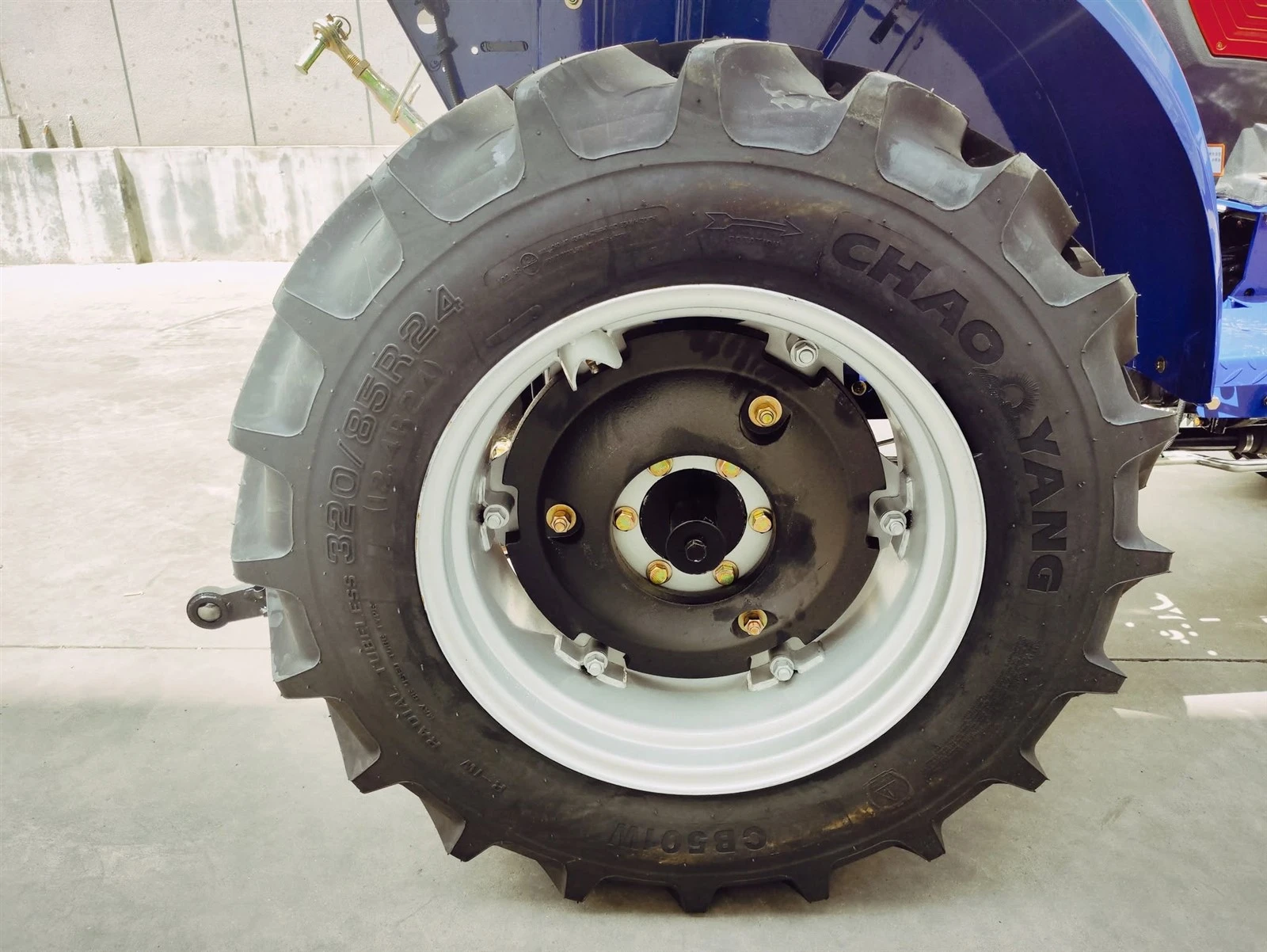

Radial Tires for Better Traction & Comfort:

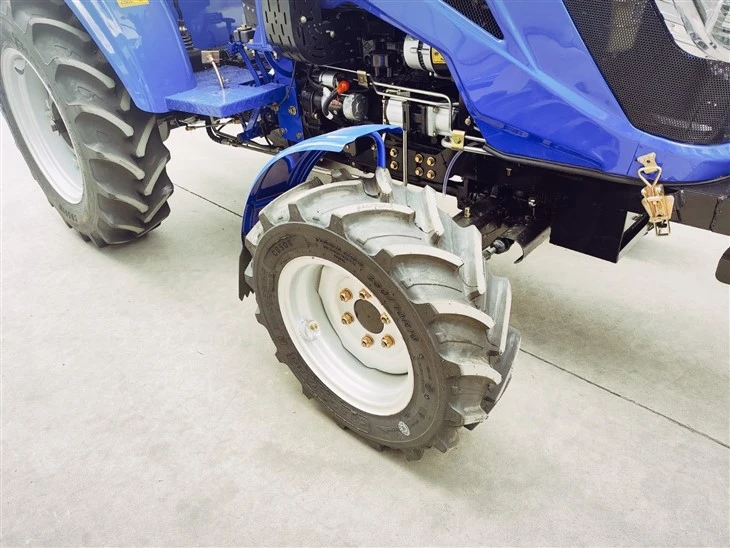

Front: 260/70R16

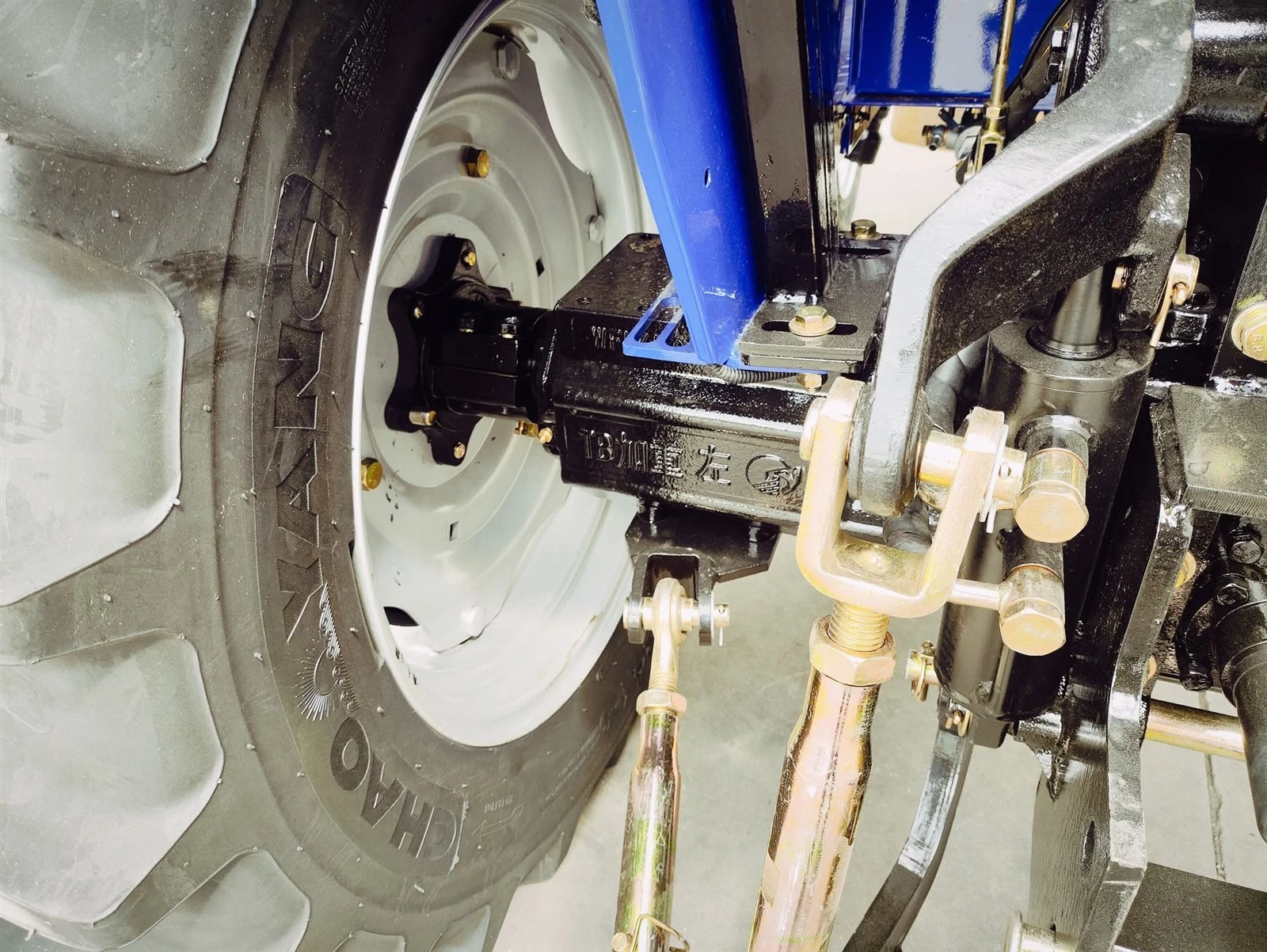

Rear: 320/85R24
Front & Rear Ballast – improved balance and pulling power

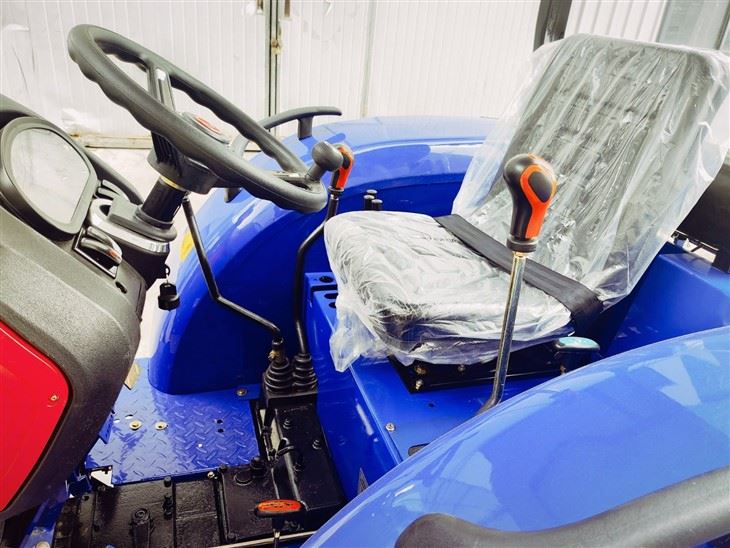

Comfort & Safety

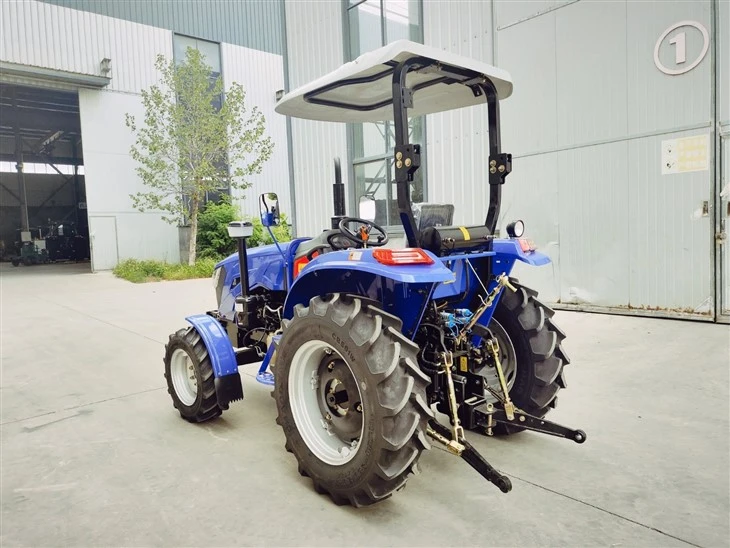

ROPS with Sunshade – enhanced operator safety and comfort
Stable Chassis Design – smooth operation on uneven terrain
Ideal Applications
Field Preparation & Tillage
Row Crop & Garden Farming
Transport & Daily Farm Tasks
PTO-Driven Implements
Details
Troubleshooting Tractor Automatic Gear Skipping
I. Causes of Tractor Automatic Gear Skipping:
1. Wear on the internal teeth of the secondary transmission sliding gear causes it to be thrown off under heavy load, automatically disengaging and skipping gear.
2. Wear or deformation of the secondary transmission shift fork causes axial displacement of the sliding gear, leading to gear skipping.
3. The gear lever is not fully pushed, causing the sliding gear to disengage and skip.
4. Severe wear on the locking groove between the locking ball and the shift fork shaft weakens the locking spring force, causing gear skipping.
II. Repairing Tractor Automatic Gear Skipping:
1. Replace the secondary transmission sliding gear.
2. Replace the worn or deformed shift fork.
3. Push the gear lever fully.
4. Repair or replace the locking spring.
